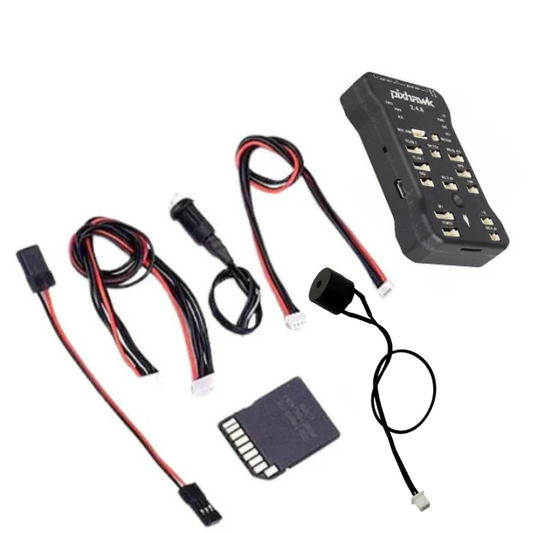

Pixhawk Flight Controller (2.4.8 class)

Details:

1. Product Name: Pixhawk Flight Controller (2.4.8 Class)
2. Processor: 32-bit STM32F427 Cortex-M4 MCU with FPU
3. Backup Processor: STM32F103 fail-safe co-processor
4. IMU Sensors: 3-Axis Gyroscope, 3-Axis Accelerometer, 3-Axis Magnetometer
5. Barometer: Integrated high-resolution barometric pressure sensor
6. Interfaces:
   • 5 × UART ports
   • I2C, SPI, CAN
   • 14 PWM / Servo outputs
   • 8 PWM / Servo inputs
7. GPS Support: Compatible with u-blox GPS modules
8. Power Module Support: 5.3V regulated power input with voltage and current sensing
9. SD Card Slot: microSD for flight data logging
10. Firmware Support: PX4 and ArduPilot compatible
11. Connectivity: Micro USB for configuration and firmware updates
12. Application: Multirotor, Fixed Wing, VTOL, Rover, and Autonomous UAV platforms

Description:
Pixhawk Flight Controller 2.4.8 Class is a professional-grade open-source autopilot system designed for drones, UAVs, autonomous robots, and advanced robotics research. Built around the STM32F427 Cortex-M4 processor with a dedicated fail-safe co-processor, it delivers reliable real-time flight stabilization and autonomous navigation.

This flight controller supports PX4 and ArduPilot firmware, enabling advanced flight modes such as GPS waypoint navigation, return-to-home, altitude hold, loiter, mission planning, and fully autonomous operation. With multiple UART, CAN, SPI, and I2C interfaces, it allows seamless integration with GPS modules, telemetry radios, power modules, ESCs, and companion computers such as Raspberry Pi.

The integrated IMU sensors and barometer ensure precise attitude estimation and altitude control, making it suitable for quadcopters, fixed-wing aircraft, VTOL drones, agricultural UAVs, mapping drones, and research-grade autonomous systems.

Widely used in drone development, aerospace research labs, robotics competitions, and industrial UAV prototyping, Pixhawk 2.4.8 remains a trusted platform for stable, scalable, and programmable flight control systems.
